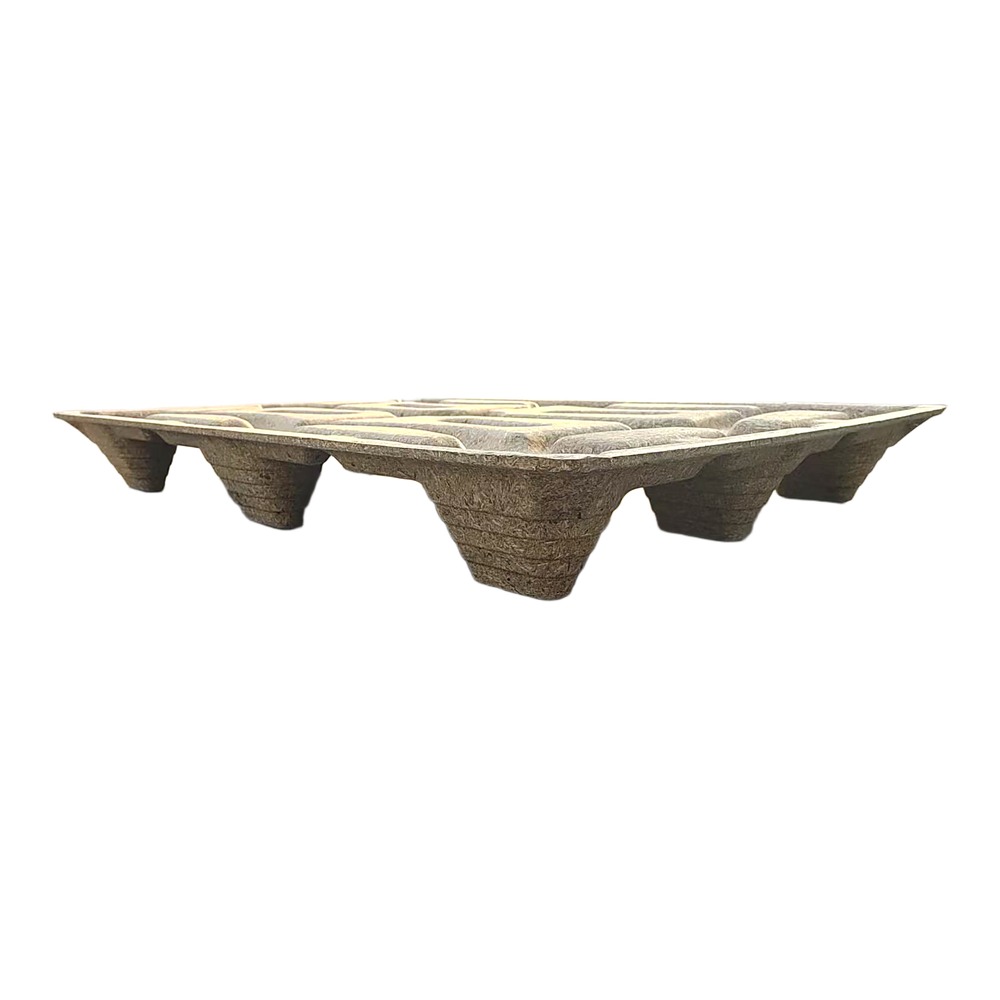

The Higrade 1200 × 800 × 130 mm presswood pallet is a two-way entry, single-deck moulded pallet weighing only 15 kg ± 1 kg — about one third lighter than an equivalent solid-wood pallet, which cuts manual handling strain and freight weight. Pressed from recycled wood, straw and bamboo at over 200 °C and more than 20 MPa with a patented modified MDI adhesive, it carries more than 2,000 kg dynamically and 6,000 kg statically, and its 93 mm fork opening suits standard powered and hand trucks. The high-temperature process makes the pallet pest-free and ISPM 15 exempt, so export shipments need no fumigation, heat treatment or IPPC marking. Water-immersion thickness swelling stays at 13 % and there is no formaldehyde release, making it suitable for chilled storage.
Specifications
| Size | 1200 × 800 × 130 mm |
|---|---|
| Series | Single-Deck Series |
| Fork entry | Two-way entry |
| Fork entry height | 93 mm |
| Dynamic load | > 2,000 kg |
| Static load | > 6,000 kg |
| Weight | 15 kg ± 1 kg |
| Material | Recycled wood / straw / bamboo + modified MDI adhesive (PCT/CN2022/138349) |
| Moisture content | ≤ 7 % |
| 24 h water-immersion thickness swelling | 13 % |
| Export quarantine | ISPM 15 exempt — no fumigation, no IPPC mark |
Why Choose the 1200 × 800 mm Diamond-Pattern Pallet

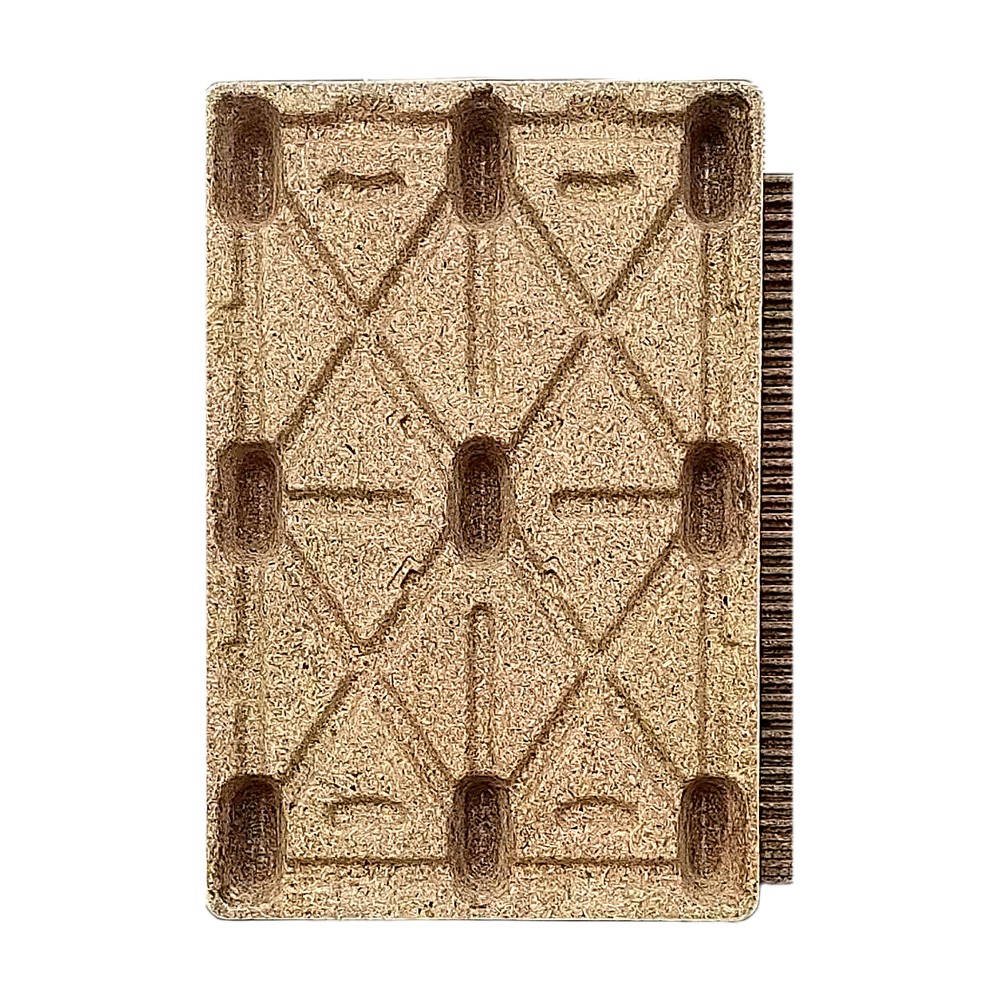

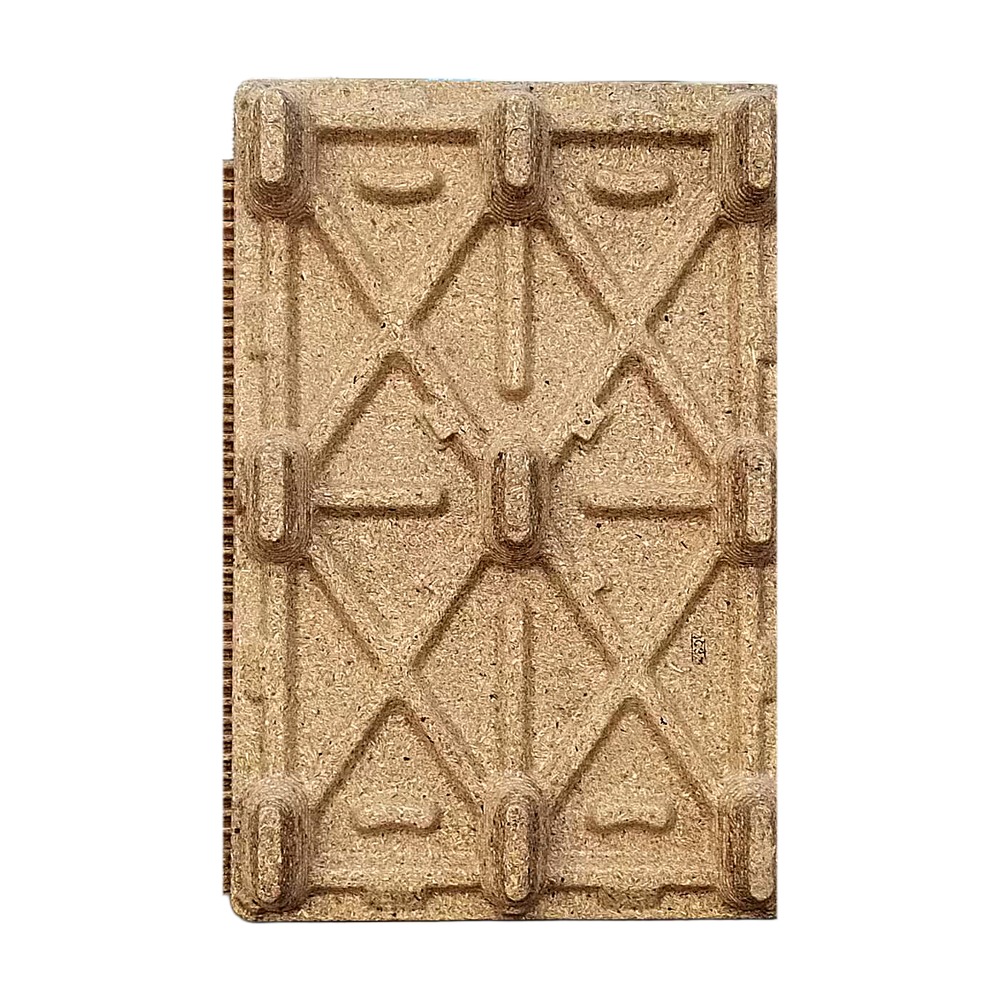

15 kg ± 1 kg. That is roughly one third of what an equivalent sawn-timber pallet weighs, and it compounds through the whole logistics chain: easier manual handling, more payload per truck, less freight paid on packaging. The trade-off people expect — lower load capacity — is handled here by geometry. The diamond lattice runs diagonally across the deck in two directions, so a load applied anywhere on the surface is carried by ribs running two ways rather than one.
The same pattern is what gives the pallet its grip. Cartons and shrink-wrapped bundles sit on a raised lattice, which means they resist sliding when a truck brakes hard or a pallet is tilted through a dock door. For stretch-wrapped mixed loads that are not perfectly squared up, this is a practical difference in how often a load arrives intact.
Everything else is the standard Higrade build: recycled wood, straw and bamboo pressed into shape above 200 °C at more than 20 MPa with a patented modified MDI adhesive, with more than 2,000 kg dynamic and 6,000 kg static load through a 93 mm two-way fork opening.
Where 1200 × 800 mm Presswood Pallets Are Used
- European import standard — 1200 × 800 is the classic Euro footprint, so goods devan straight into European racking and trailers without re-palletising.
- Air freight and express road — when freight is charged on weight rather than volume, shedding two thirds of the pallet tare weight pays for itself immediately.
- Chilled and frozen distribution — no formaldehyde release from the MDI adhesive and only 13 % thickness swelling after 24 hours immersion, so the pallet survives condensation cycles in cold rooms.
- Manual order picking — 15 kg is light enough for one person to reposition an empty unit without a truck.
Shipping, Loading and Export Documentation
The 1200 × 800 footprint is what makes this model efficient in European logistics: two pallets side by side fill a standard trailer width with minimal wasted space, and the Euro modular grid means cartons built for this size stack without overhang. Units ship nested from Qingdao — send us the container type and we will return the loading sheet for this mould. Every shipment carries the ISPM 15 exemption statement (processed above 200 °C, no fumigation, no heat treatment, no IPPC mark), certificate of origin including Form E / Form F / RCEP where applicable, invoice, packing list and bill of lading.
If you want the same footprint and load ratings with a different deck surface, ask about the wave-pattern version of this mould — it is the same specification with a different rib geometry.
Frequently Asked Questions
Do Higrade presswood pallets need ISPM 15 fumigation for export?
No. Higrade pallets are moulded at over 200 °C and more than 20 MPa, which eliminates insects and fungi in the raw material. They are treated as processed and pest-free under FAO IPPC ISPM 15, so no fumigation, heat treatment or IPPC marking is required.
What load can the 1200 × 800 × 130 mm presswood pallet carry?
More than 2,000 kg dynamic load and more than 6,000 kg static load, at a pallet weight of only 15 kg ± 1 kg — roughly one third lighter than an equivalent solid-wood pallet.
Is this pallet suitable for cold storage?
Yes. The modified MDI adhesive gives a 24-hour water-immersion thickness swelling of only 13 % and releases no formaldehyde, so the pallet works in chilled storage as well as dry warehouses.
