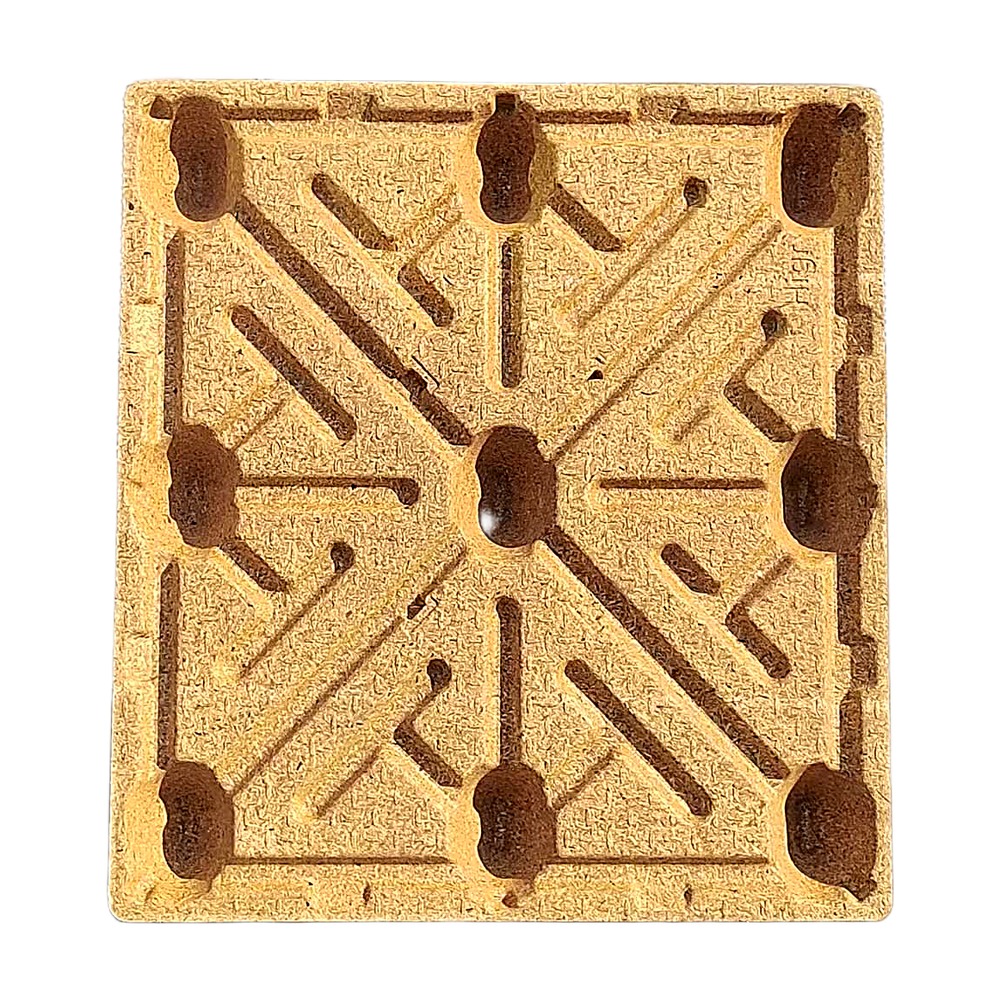

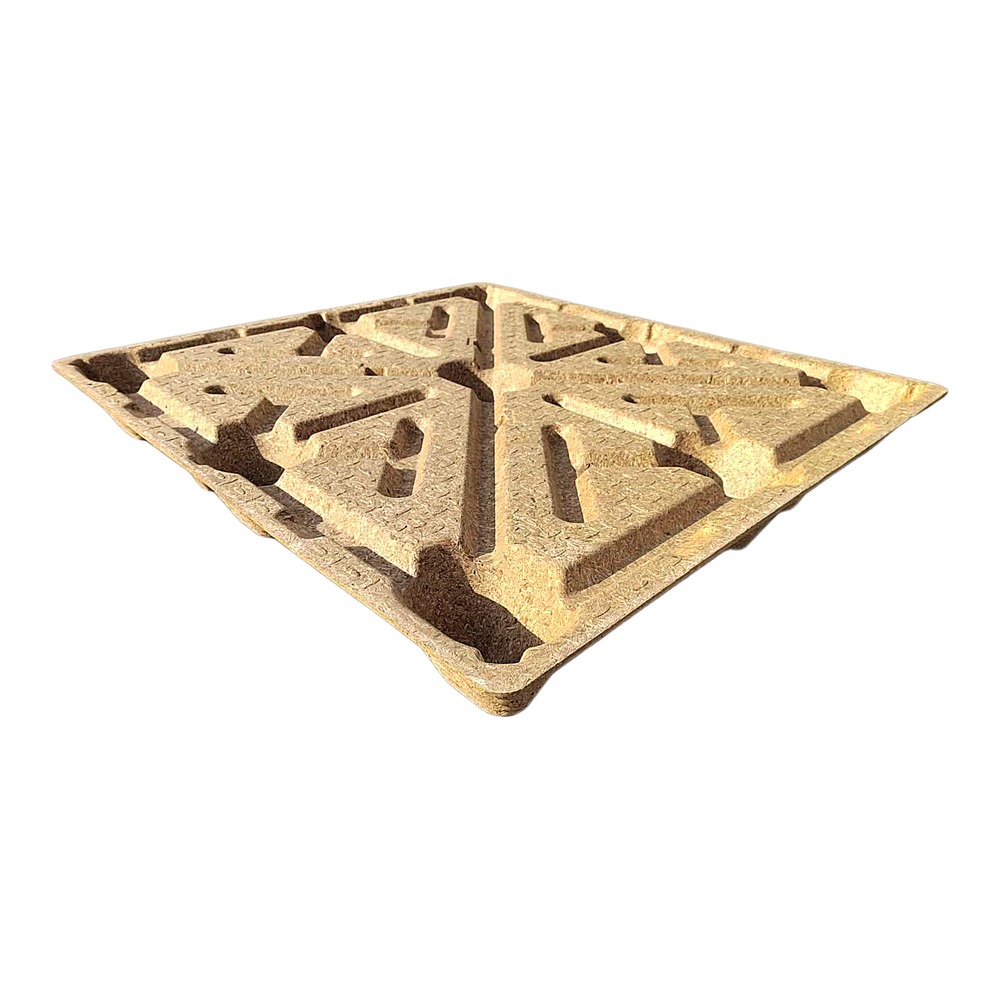

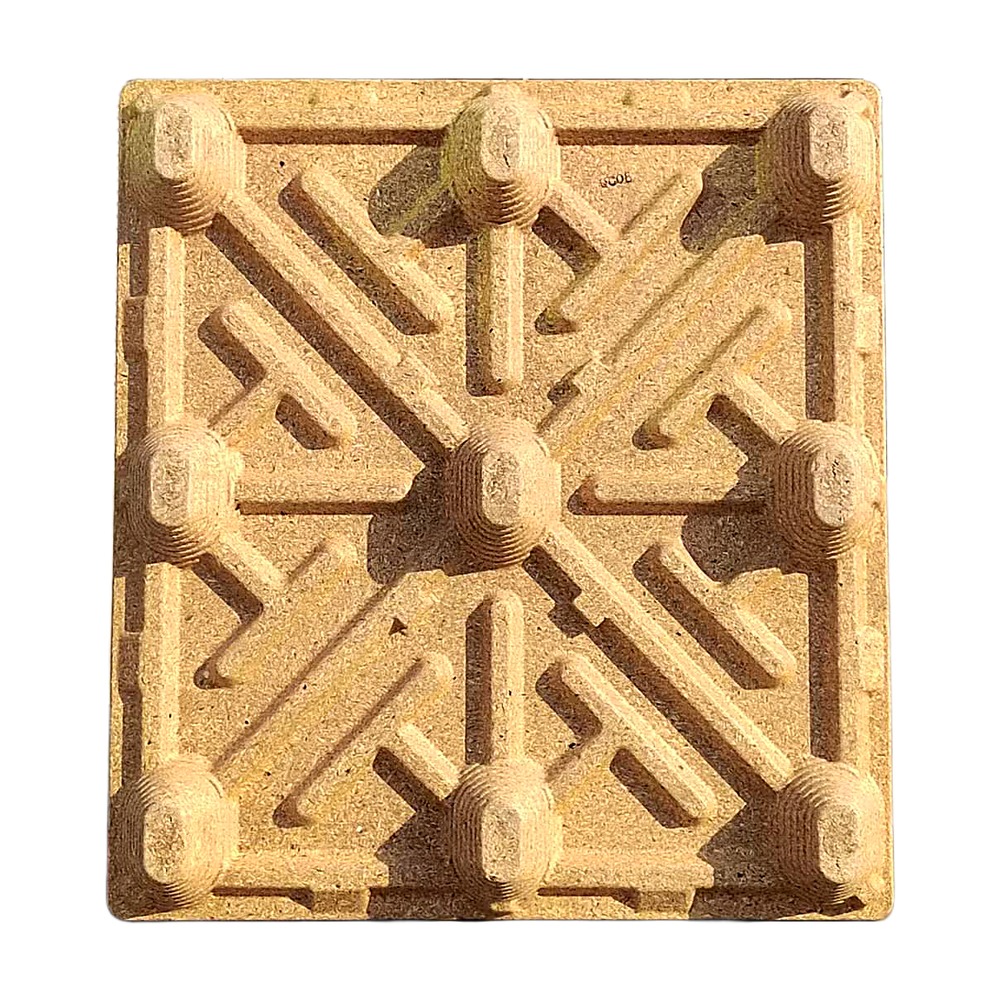

The Higrade 1200 × 1100 mm presswood pallet carries a dense parallel radial rib pattern — the highest rib density in the single-deck range — so bending stiffness is concentrated where rack beams leave the deck unsupported. Nine moulded feet spread ground pressure evenly and permit four-way fork entry. It is pressed in one piece from recycled wood, straw and bamboo at over 200 °C and more than 20 MPa with a patented modified MDI adhesive, producing a sealed, moisture-resistant surface that swells only 13 % in thickness after 24 hours of water immersion and releases no formaldehyde. High-temperature pressing leaves the pallet pest-free and ISPM 15 exempt: no fumigation, no heat treatment and no IPPC marking needed for export.
Specifications
| Size | 1200 × 1100 mm |
|---|---|
| Series | Rackable Single-Deck Series |
| Deck | Dense parallel radiating ribs |
| Feet | 3 × 3 nine-foot layout |
| Fork entry | Four-way entry |
| Material | Recycled wood / straw / bamboo + modified MDI adhesive (PCT/CN2022/138349) |
| Moisture content | ≤ 7 % |
| 24 h water-immersion thickness swelling | 13 % |
| Export quarantine | ISPM 15 exempt — no fumigation, no IPPC mark |
| Customisation | Size / deck pattern / colour / embossed logo |
Why Choose the 1200 × 1100 mm T-Deck Pallet
Among all the single-deck moulds, this one carries the densest rib pattern — parallel radiating ribs packed closer together than any other variant in the range. Rib density is the cheapest way to buy bending stiffness without adding weight, and it is why this model is the one to specify when deflection, not gross load capacity, is the limiting factor.
Beam racking makes deflection the problem. A pallet spanning two beams only touches the rack at its edges, so the whole unit load is carried by the deck’s own resistance to bending. Nine feet in a 3 × 3 layout with four-way entry support the deck at nine points, and the dense rib field distributes stress between them instead of letting it localise.
The 1200 × 1100 footprint itself is worth noting: 1,200 mm aligns with the European industrial grid and ISO container planning, while 1,100 mm keeps compatibility with Asian standards and many ISO container widths. It is a compromise footprint that avoids re-handling at either end.
Material and process are unchanged from the rest of the range — recycled wood, straw and bamboo bonded with a patented modified MDI adhesive (PCT/CN2022/138349), pressed above 200 °C at more than 20 MPa, held at 7 % or below moisture.
Where 1200 × 1100 mm T-Deck Pallets Are Used
- Wide-span racking — where beams are set far apart and the deck, not the product, is what would fail.
- Export programmes crossing both European and Asian handling networks — the 1200 × 1100 footprint sits acceptably in both.
- Dense bulk goods — ceramic raw material, minerals, resin: heavy products that need a stiff deck under concentrated weight.
- Automated high-bay storage — consistent moulded dimensions and four-way entry keep tolerances predictable for automated cranes.
Shipping, Loading and Export Documentation
Nested loading from Qingdao; the exact per-container count depends on the stack pitch of this particular mould, so send us your container type and we will return the loading sheet with the quotation. Each shipment carries the ISPM 15 exemption statement (processed above 200 °C — no fumigation, no heat treatment, no IPPC stamp), certificate of origin including Form E / Form F / RCEP where eligible, commercial invoice, packing list and bill of lading. Tell us your beam span, unit load weight and maximum permitted deflection and we will confirm whether this mould is the correct specification or whether the standard cross-rib 1200 × 1000 will do.
Frequently Asked Questions
Do Higrade presswood pallets need ISPM 15 fumigation for export?
No. Higrade pallets are moulded at over 200 °C and more than 20 MPa, which eliminates insects and fungi in the raw material. They are treated as processed and pest-free under FAO IPPC ISPM 15, so no fumigation, heat treatment or IPPC marking is required.
Why does the 1200 × 1100 mm pallet use such a dense rib pattern?
Dense parallel radiating ribs give the highest bending stiffness in the single-deck range, concentrating strength exactly where rack beams leave the deck unsupported. That makes the pallet suitable for heavy stacking and racked storage alike. Please contact us for the current load rating of this size.
Can the pallet be customised in size, colour and logo?
Yes. Dimensions, deck pattern, rib structure, colour and embossed logo can all be produced to drawing, with mould development handled in-house. Customised footprints are available from pilot to mass production volumes.
