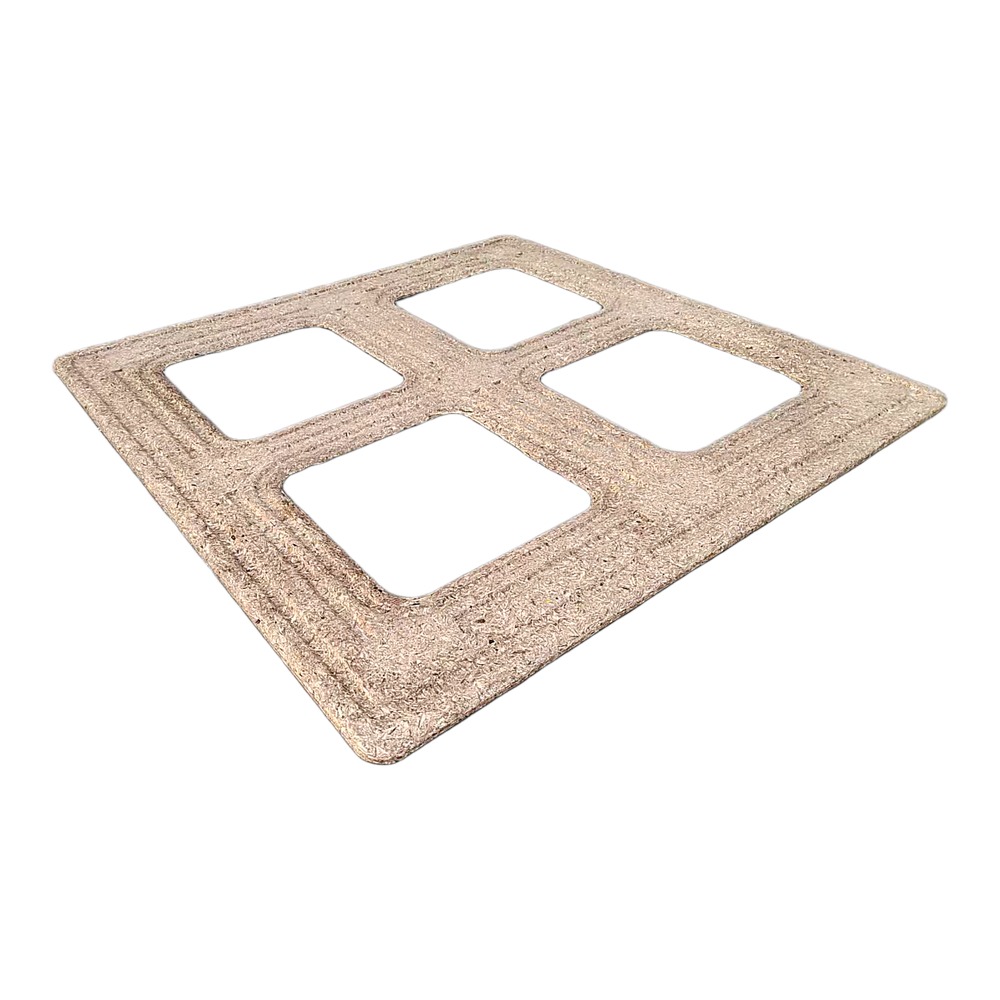

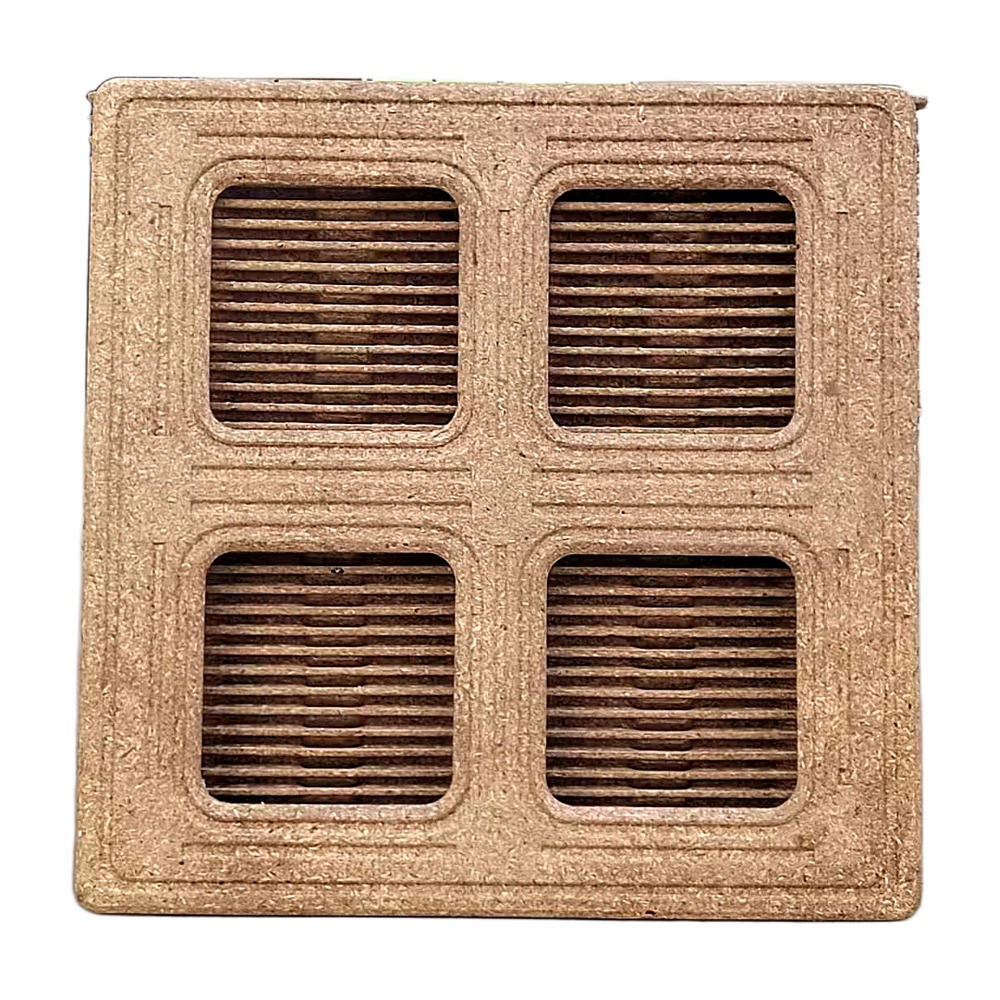

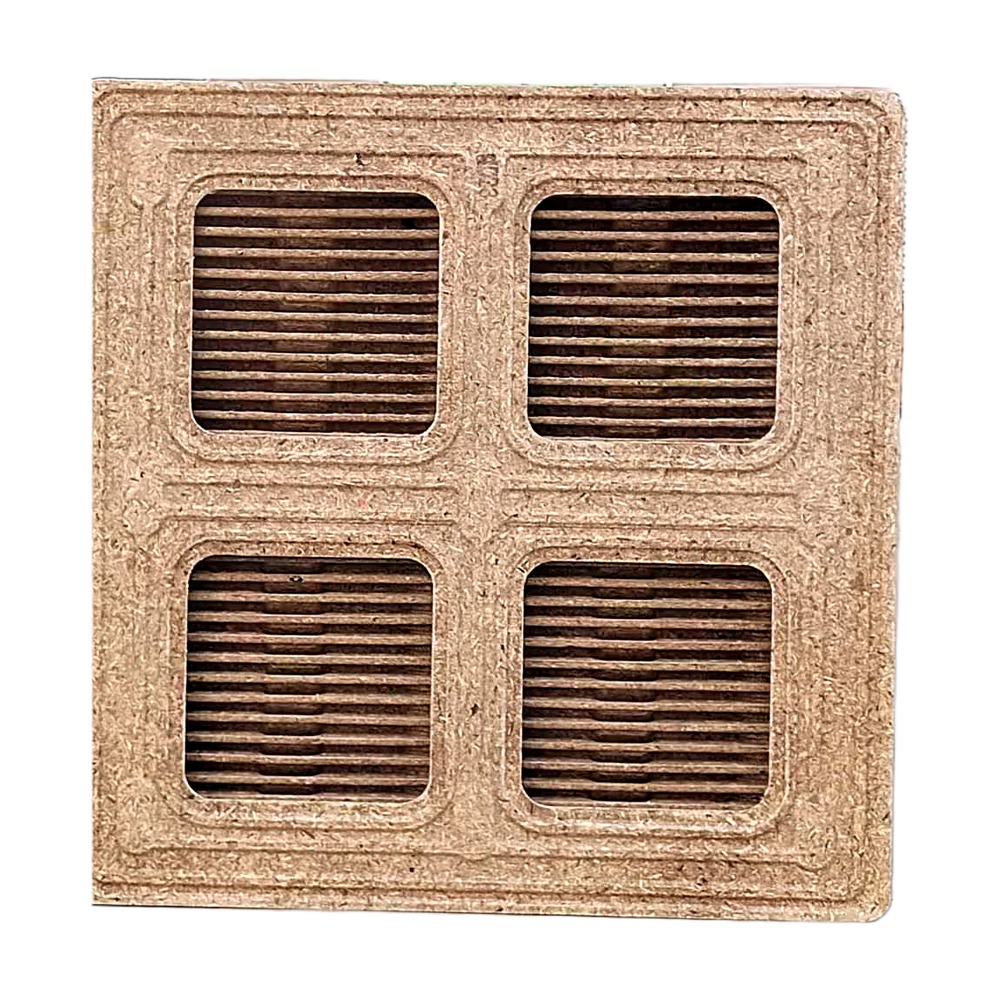

The Higrade 1100 × 1100 mm presswood bottom board is the load-bearing base of our double-deck pallet system. Moulded in one piece from recycled wood, straw and bamboo with a patented modified MDI adhesive, it carries four reinforced apertures and laminated support slats, and pairs with a presswood top deck plus edge strips to build a 1100 × 1100 × 150 mm double-deck pallet rated above 2,700 kg dynamically and 8,000 kg statically, with four-way fork entry at 95 mm. Two configurations are offered — 15 kg ± 1 kg and 28 kg ± 1 kg — so users can match reinforcement to load. The board is pest-free by production and therefore ISPM 15 exempt, needing no fumigation, heat treatment or IPPC marking for export.
Specifications
| Size | 1100 × 1100 mm (bottom board) |
|---|---|
| Series | Bottom Board / Double-Deck Series |
| Assembled size | 1100 × 1100 × 150 mm |
| Composition | Presswood bottom board + top deck + edge strips |
| Fork entry | Four-way entry |
| Fork entry height | 95 mm |
| Assembled dynamic load | > 2,700 kg |
| Assembled static load | > 8,000 kg |
| Weight options | 15 kg ± 1 kg / 28 kg ± 1 kg |
| Material | Recycled wood / straw / bamboo + modified MDI adhesive (PCT/CN2022/138349) |
| Moisture content | ≤ 7 % |
| 24 h water-immersion thickness swelling | 13 % |
| Export quarantine | ISPM 15 exempt — no fumigation, no IPPC mark |
What the Bottom Board Assembles Into
On its own this is not a working pallet — it is the load-bearing base of the double-deck system. The bottom board carries four reinforced apertures and laminated support points; the top deck and edge strips are assembled onto it to produce a complete double-deck pallet measuring 1100 × 1100 × 150 mm with four-way entry and a 95 mm fork opening.
Assembled, the system is rated for more than 2,700 kg dynamic and 8,000 kg static load — higher than any single-deck mould in the range, because a double deck spreads load through two surfaces instead of one and the edge strips tie them together. Two board weights are available, 15 kg ± 1 kg and 28 kg ± 1 kg, and the choice between them is simply how much abuse the pallet has to survive.
Buying boards and decks separately also changes the logistics. Spares ship flat and nested, so a plant can hold a far larger inventory of replacement components in the same warehouse space, and damaged decks can be swapped without writing off the whole pallet.
Which Bottom Board Weight Should You Choose
- 15 kg ± 1 kg — the lighter option, specified for one-way export programmes and single-trip systems where the pallet does its job once and is then recycled.
- 28 kg ± 1 kg — roughly double the material, aimed at closed-loop pools and heavy industrial duty where the pallet is reused and needs to withstand repeated impacts from clamp trucks and rough yard handling.
Both variants share the same moulded construction: recycled wood, straw and bamboo bonded with a patented modified MDI adhesive (PCT/CN2022/138349), pressed above 200 °C at more than 20 MPa, moisture at 7 % or below, and 13 % thickness swelling after 24 hours immersion. If you are unsure which suits your duty cycle, send us the expected number of trips and handling method and we will recommend one.
Shipping, Loading and Export Documentation
Boards ship nested, which is where the format earns its keep — a stack of bare bottom boards occupies a fraction of the volume of assembled double-deck pallets, so a single container can carry enough boards and decks to build out a complete pallet fleet on arrival. Give us your container type and the ratio of boards to decks you need and we will return the loading plan.
Standard export documents ship from Qingdao with every order: ISPM 15 exemption statement (processed above 200 °C, so no fumigation, no heat treatment and no IPPC stamp required), certificate of origin including Form E / Form F / RCEP where eligible, commercial invoice, packing list and bill of lading. If you intend to assemble double-deck pallets locally rather than buy them assembled, tell us and we will quote the component set with assembly instructions.
Frequently Asked Questions
Do Higrade presswood pallets need ISPM 15 fumigation for export?
No. Higrade pallets are moulded at over 200 °C and more than 20 MPa, which eliminates insects and fungi in the raw material. They are treated as processed and pest-free under FAO IPPC ISPM 15, so no fumigation, heat treatment or IPPC marking is required.
What does the bottom board assemble into?
The 1100 × 1100 mm bottom board combines with a presswood top deck and edge strips to form a 1100 × 1100 × 150 mm double-deck pallet rated above 2,700 kg dynamic and 8,000 kg static load, with four-way fork entry at 95 mm.
Which bottom board weight should I choose?
Two configurations are available — 15 kg ± 1 kg and 28 kg ± 1 kg. The lighter build suits standard loads, while the 28 kg build adds reinforcement for heavier or high-cycle applications.
